Tracer Gas Leak Detection in Tyler, TX
Tracer gas leak detection finds the leaks that make no sound at all. We fill a drained line with a light, safe gas, it rises up through the soil or the slab to the surface, and a gas detector follows it to the spot directly above the break.
Prefer to talk first? Call (903) 651-5125 and describe what you are seeing.
Letting the gas do the finding

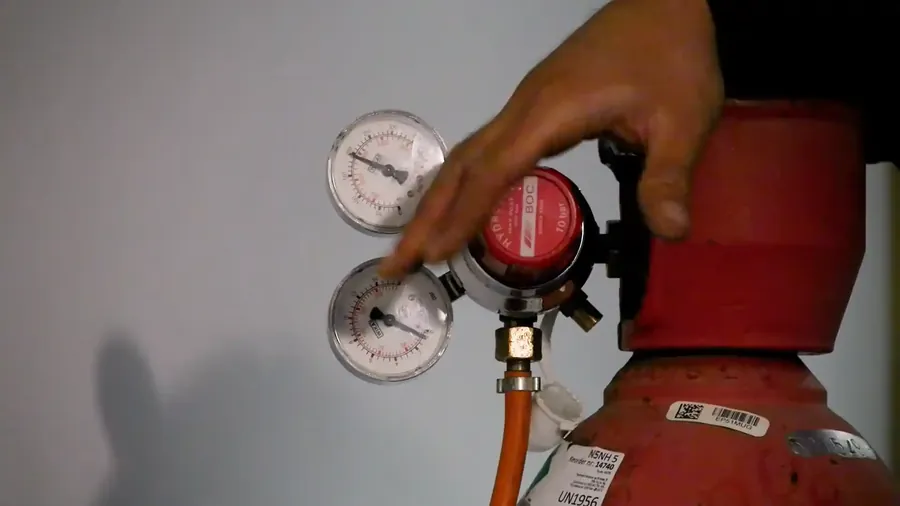

Sound-based methods need pressure and noise. Tracer gas needs neither. We isolate and drain the line, then introduce a safe detectable gas, commonly a blend of hydrogen and nitrogen that is non-flammable in that mix. The gas fills the line and seeks every opening, escaping through the leak and migrating upward through the ground or the concrete above it.
Being far lighter than air, the gas rises in a fairly straight path to the surface, so where the detector reads it concentrating is directly over the leak. That makes tracer gas one of the few methods that finds a silent, unpressurized leak with real precision.
Reading the gas at the surface
We sweep a sensitive gas detector across the suspected area, watching for the rising concentration that marks where the gas is surfacing. Because the tracer is chosen to stand out against normal air, the signal climbs clearly as we near the spot and peaks right over the break.
On a slab, the gas works up through the concrete and any cracks or the soil beneath, and on a buried yard line it rises through the dirt. Either way, the detector turns an invisible underground leak into a marked point on the surface.
The leaks tracer gas solves
Tracer gas is the answer for the cases sound cannot touch: a drain or waste line with no pressure, a leak too slow to hiss, or a line that has been shut off. It also confirms a suspected leak when acoustic results are ambiguous, because the gas either surfaces at a spot or it does not.
It needs a line we can isolate and charge, the same as helium, and helium is itself one tracer gas we use for the very smallest leaks. The broader tracer-gas blends cover the wider range of silent and slow leaks across a Tyler property.
Choosing the gas and keeping it safe
Not every leak gets the same gas. For the smallest seeps we reach for helium, the tiniest molecule. For a broader silent or slow leak we use a hydrogen-nitrogen blend formulated to be non-flammable at that ratio, which keeps the work safe inside a home and around a slab. The gas is chosen to suit the leak and the setting.
Safety is built into the method. The blends we use are non-toxic and disperse harmlessly, and because only a small volume is needed to trace a line, there is no lingering hazard once the work is done. It is a clean way to chase a leak that sound cannot reach.
From the surface mark to the repair
Where the gas surfaces, we mark the spot and open one targeted area over the leak, slab or soil. The precision of the surfacing point keeps that opening small, and after the repair we can recharge the line to confirm the gas no longer escapes before closing up.
For the silent leaks that defeat every listening method, tracer gas is frequently what finally locates them, which is why it rounds out the detection toolkit.
A silent leak that makes no sound?
Talk it through with a licensed Tyler leak specialist, any hour.
☎ (903) 651-5125Questions Tyler homeowners ask
How does tracer gas find a leak that makes no sound?
We fill the drained line with a light, safe gas. It escapes through the leak and rises to the surface, where a detector reads it. Sound is not needed, so it finds silent and unpressurized leaks.
Is the gas safe in and around my home?
Yes. We use a non-flammable blend, commonly hydrogen in nitrogen, that is safe for the purpose and disperses afterward. Helium is another inert tracer we use for the tiniest leaks.
What leaks is tracer gas best for?
Silent ones: drains and waste lines with no pressure, very slow seeps, and lines that are shut off. It also confirms a leak when acoustic results are unclear.
Does the pipe have to be empty?
It needs to be isolatable so we can drain and charge it with the gas. We close off the section, introduce the tracer, then follow it to the surface.
How is this different from helium detection?
Helium is one specific tracer gas, the smallest molecule, used for the tiniest leaks. Tracer-gas blends cover the broader range of silent and slow leaks. Call (903) 651-5125 and we will match the gas to the leak.
